Introduction & Overview

The UPF acceleration plays a key role in the 5G core network to realize the transformative vision of low latency and high throughput. 5G core networks transform data processing, offering enhanced speed, volume, and services. It enhances mobile broadband experiences and supports many different verticals like VR, IoT, Automotive, and Healthcare; however, these 5G services set very challenging and demanding requirements on latency and throughput for a better experience. The User Plane Function (UPF) is an essential 5G core component that handles the critical operation of processing subscriber traffic between the RAN (Radio Access Network) and the DN (Data Network). The operators will need a solution that can handle network functions like low latency switching and slicing without sacrificing throughput. GENEViSiO’s UPF SmartNIC solution PAC-u10 & PAC-u21 serials supporting low latency and high throughput requirements will be one of the best solutions for carrier building 5G core networks.

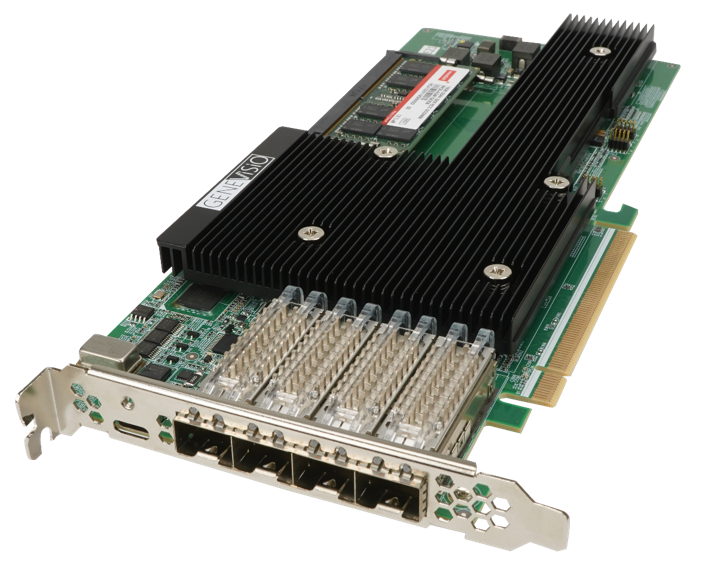

PAC-u10

PAC010
  • Form factor:Gen3 x8
  • Processor: NXP LX2160
  • I/O port: 4 x 10/25GbE SFP28
  • Memory slot (up to 32GB / per slot): 2 slots
  • Max. Memory Capacity: Up to 64GB
  • IEEE 1588/SyncE:
     ITU G.8261, G.8271, G.8272, G.8273
  • Dimension: Full Height, ¾ Length (111.15 x 254 x 17.14 mm)
  • Power Consumption: 75W (max.)

PAC-u21

  • Form factor:Gen5 x4
  • Processor: Marvell Octeon CN106xx
  • I/O port: 2 x 100GbE SFPDD
  • Memory slot (up to 32GB / per slot): 1 slot
  • Max. Memory Capacity: Up to 32GB
  • IEEE 1588/SyncE:
     ITU G.8261, G.8271, G.8272, G.8273
  • Dimension: Full Height, Half Length (111.15 x 167.65 x 17.14 mm)
  • Power Consumption: 75W (max.)
