Introduction & Overview

NPN-110 and NPN-210 are Small Cells with open front haul solutions. Through the cloud deployment, they can be Small Cells with open fronthaul (DU+CU) or DU only. Small Cell with open fronthaul is an essential ingredient for flexibility of deployment. Open front haul provides RU connectivity to Small Cell to fulfill different radio technology and radio bands from sub 6 to mmWave.

Both Small Cell solutions are under 85W to provide at least 4 x CC (4T4R 100Mhz) performance and indoor-friendly, acoustic solutions with good flexibility for different installations like DIN-rail or wall mount systems.

NPN-110 is an industrial temperature fanless model for hard environments like manufacturing, power substation, railway, agriculture, and environment monitoring 5G applications, etc. Open fronthaul provides RU connectivity to a Small Cell to fulfill different radio technology and radio bands from sub 6 to mmWave.

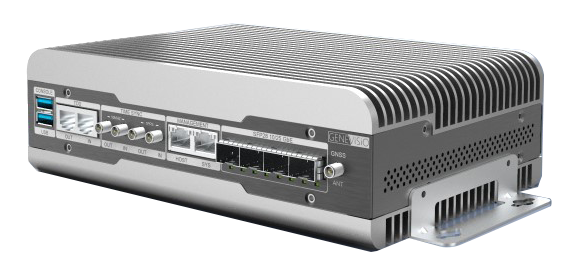

NPN-110

NPN110

  • Construction design:Fan-less

  • Chip Set:1 x NXP LX-2160 + 2 x LA-1201

  • VDU Support:4CC, 4T4R, 100Mhz

  • Industrial fan-less design:-20 ~ 65 °C

  • IEEE1588:ITU G.8261, G.8271, G.8272, G.8273

  • I/O Port:

      ◦ 10/25GbE SFP28 port x 4 as fronthaul to RU

      ◦ 1pps in/out, 10Mhz in/out, ToD in/out, GNSS in

      ◦ Management port

      ◦ Console por

      ◦ USB port

  • SW Support:Open BMC with Redfish Support

  • Power Supply:24V DC ± 10%

  • Power Consumption:85W (max.)

  • Sample Available:Now

NPN-210

  • Construction design:System Fan

  • Chip Set:1 x NXP LX-2160 + 2 x LA-1201

  • VDU Support:4CC, 4T4R, 100Mhz

  • Industrial fan-less design:-20 ~ 65 °C

  • IEEE1588:ITU G.8261, G.8271, G.8272, G.8273

  • I/O Port:

      ◦ 10/25GbE SFP28 port x 4 as fronthaul to RU

      ◦ 1pps in/out, 10Mhz in/out, ToD in/out, GNSS in

      ◦ Management port

      ◦ Console port

      ◦ USB port

  • SW Support:Open BMC with Redfish Support

  • Power Supply:90VAC to 264VAC

  • Power Consumption:85W (max.)

  • Sample Available:Q2, 2023
